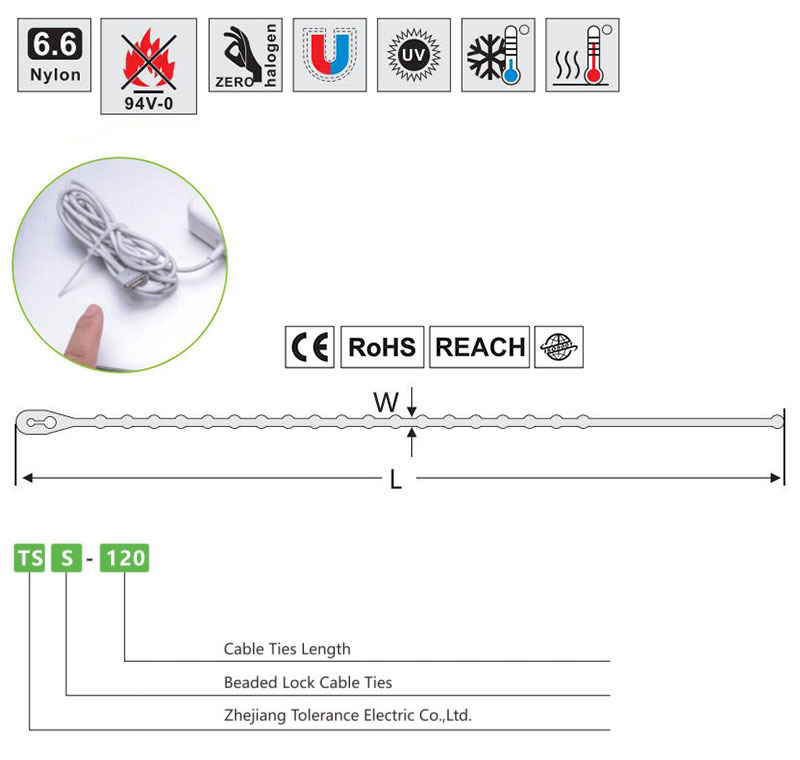

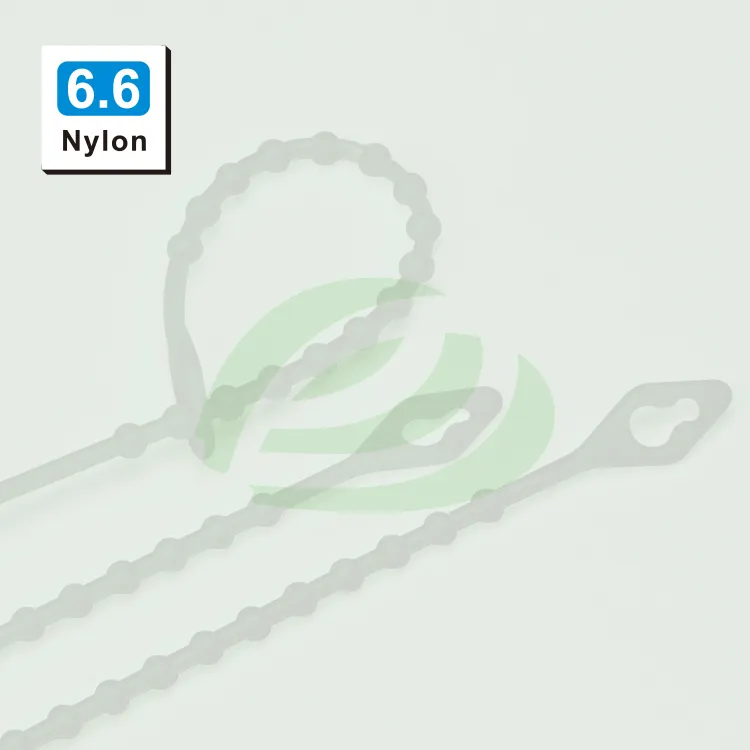

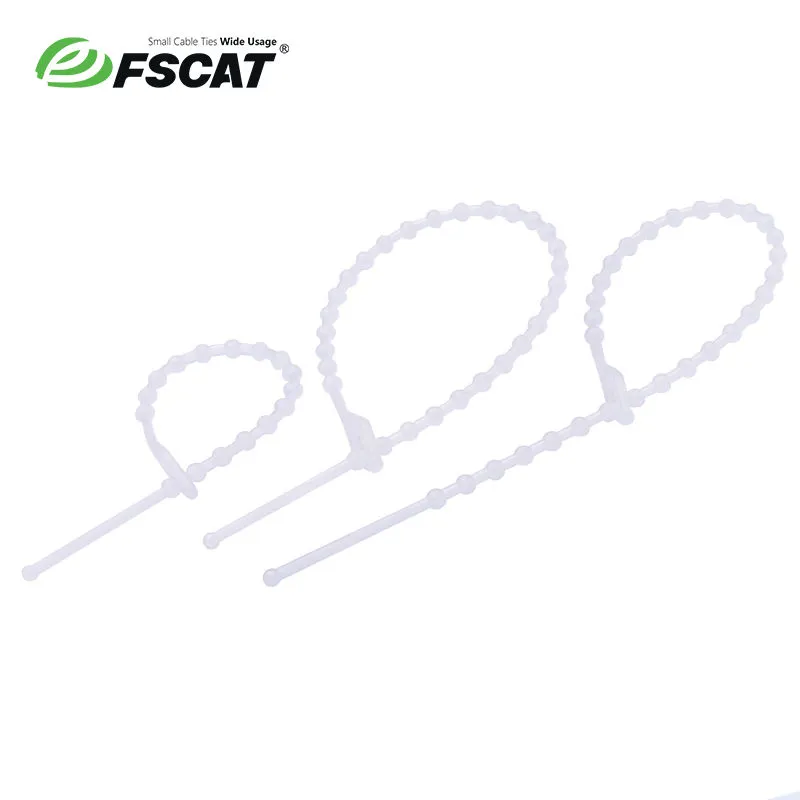

Beaded Lock Cable Ties
Beaded Lock Cable Ties
Beaded Lock Cable Ties

Beaded Lock Cable Ties

Releasable

Easy to install

No tools required

Beads lock and release through keyhole slots

Effective for bundling and reinstallation of wires and cables

For special customization needs, contact us to learn more!

Certifications

For lower prices on bulk purchases, please contact us at

Request for Quotation
Product Description

Application

Beaded cable ties are inexpensive releasable ties that are easy to install and reuse. The beaded ties are not ties for cinching and there is no tool required. The beads lock and release through keyhole slots and are effective for bundling and reinstallation of wires and cables. Natural ties are preferred for indoor use applications while UV Black is recommended for outdoor applications, providing greater resistance to ultraviolet light. Zhejiang tolerance stocks the Beaded ties in a variety of lengths from120MM,150MM,180MM(5”,6”7”) and strengths. Bulk packaging of 1000 ties per bag and smaller packaged quantities are available.

plane figure;CE,RoHS,REACH,ISO9001




Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water.  TOLERANCEpackaging may keep the moisture. In order to keep the quality,it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.



Here are our suggestion for the cable tie store:

 Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

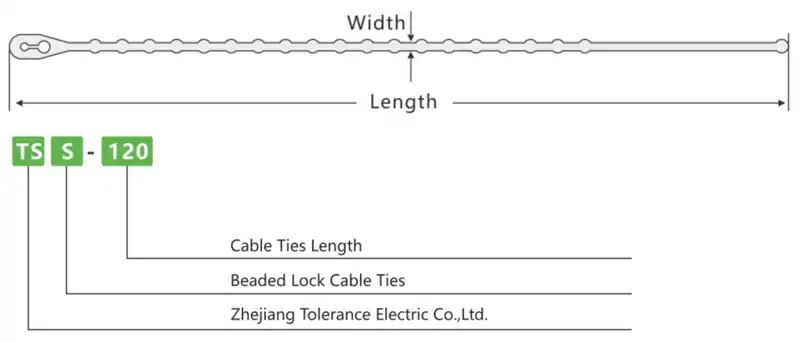

Technical Information

MATERIAL: Polyamide 6.6

Material brand: China Huafeng158L;Radici A45L;Invista 4820L

Flammability of raw material : UL 94 - V2

Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)

Installation temperature: -10°C ~+85°C.

Working temperature:-40°C ~+85°C.

Max sustaiaable tempeature for short time:+110°C.

Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.

Not resistant to phenols.

Carbon black addiction gives a better UV resistance (only for Black Cabe Ties)

Product Specification
Item No. Width Length Max.Bundle Dia. Min.Bundle Dia. Min.Tensile Strength
mm inch mm inch mm inch mm inch N LBS
TSM-110I 3.6 0.142 110 4.33 19 0.75 3 0.120  180 42
TSM-150I 3.6 0.142 150 5.91 35 1.4 3.5 0.138  180 42
TSM-160ST 4.8 0.189 160 6.3 36 1.45 3.5 0.138  222 50
TSM-220ST 4.8 0.189 220 8.66 40 1.96 3.5 0.138  222 50
TSM-300ST 4.8 0.189 300 11.81 82 3.26 3.5 0.138  222 50
TSM-350ST 4.8 0.189 350 13.78 95 3.74 3.5 0.138  222 50
TSM-370ST 4.8 0.189 370 14.57 103 4.09 3.5 0.138  222 50
TSM-300HD 7.6 0.299 300 11.81 82 3.26 8.5 0.330  540 120
TSM-350HD 7.6 0.299 350 13.78 95 3.74 8.5 0.330  540 120
TSM-380HD 7.6 0.299 380 14.96 105 4.13 8.5 0.330  540 120
Product Packaging
