3.6mm/0.14" Intermediate Cable Ties

MATERIAL: Polyamide 6.6

Material brand: China Huafeng158L;Radici A45L;Invista 4820L

Flammability of raw material : UL 94 - V2

Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)

Installation temperature: -10°C ~+85°C.

Working temperature:-40°C ~+85°C.

Max sustaiaable tempeature for short time:+110°C.

For special customization needs, contact us to learn more!

Certifications

For lower prices on bulk purchases, please contact us at

Request for Quotation
Product Description

W3.6mm Type

CONSIDER OFFERING THESE CABLE TIES AS A COST EFFECTIVE ALTERNATIVE TO THE 22KG(50LB) SERIES WHEN THE APPLICATION ALLOWS

Intermediate cable ties are effective for use in a wide variety cable and wire bundling applications requiring a maximum 18KG(40 lb) tensile strength. The one piece construction allows for consistent performance and reliability. These cable ties work efficiently and are a cost effective alternative when the heavier standard 22KG(50 lb) series is not required. Natural ties are preferred for indoor use applications while UV Black is recommended for outdoor applications, providing greater resistance to ultraviolet light. Zhejiang Tolerance stocks the Intermediate18KG( 40 lb) cable ties in 100MM--400MM( 4”--16”) lengths. Packaging of the Intermediate18KG( 40 lb)cable ties are in bulk 1000 piece bags or smaller 100 piece bags. A wide variety of colors are available for shipment to Zhejiang Tolerance Distributors in the Intermediate 18KG(40 lb )series.

Technical Information

MATERIAL: Polyamide 6.6

Material brand: China Huafeng158L;Radici A45L;Invista 4820L

Flammability of raw material : UL 94 - V2

Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)

Installation temperature: -10°C ~+85°C.

Working temperature:-40°C ~+85°C.

Max sustaiaable tempeature for short time:+110°C.

Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.

Not resistant to phenols.

Carbon black addiction gives a better UV resistance (only for Black Cabe Ties)

plane figure




Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water. packaging may keep the moisture. In order to keep the quality,it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.



Here are our suggestion for the cable tie store:

Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

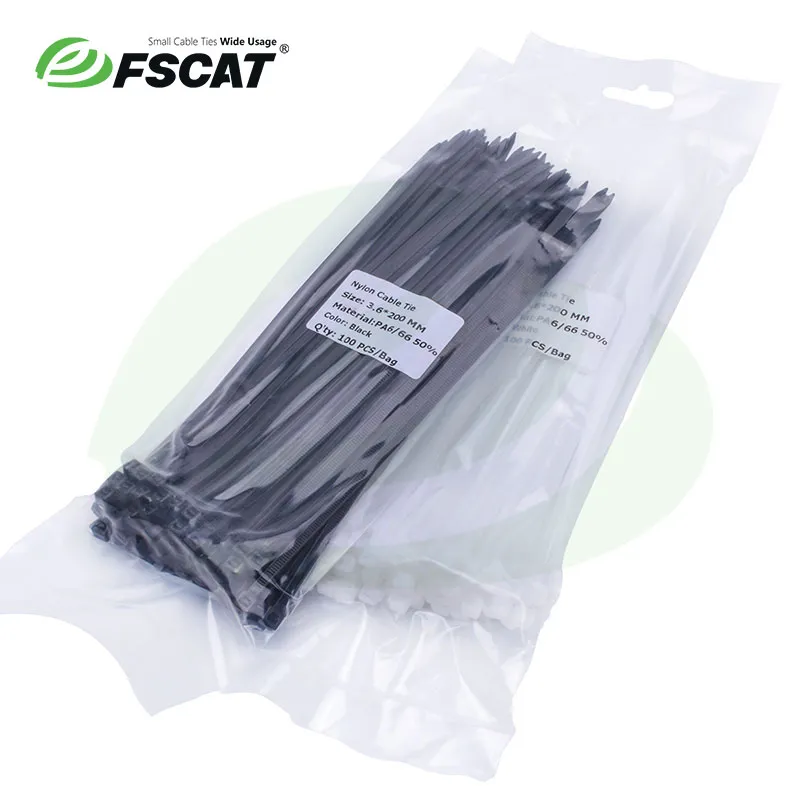

Bubble box packaging for supermarket

Intermediate Cable Ties,Bubble box packaging

Product Specification

Item No,Width,Length,Max Bundle Dia.,Min Bundle Dia.,Min.Tensile Strength,Hand Tool
