Metal Detectable cable ties are specifically designed for use in the food, beverage, and pharmaceutical processing industries. These cable ties are manufactured with metal impregnated material that allows for identification by metal detectors, x-ray inspections, and magnets. Ties are a teal color per common industry practices for easy visual detection.Metal Detectable cable ties available in bulk 1000 or 500 pieces bags or smaller 100 piece bags.

For special customization needs, contact us to learn more!

Certifications

For lower prices on bulk purchases, please contact us at

Request for Quotation
Product Description

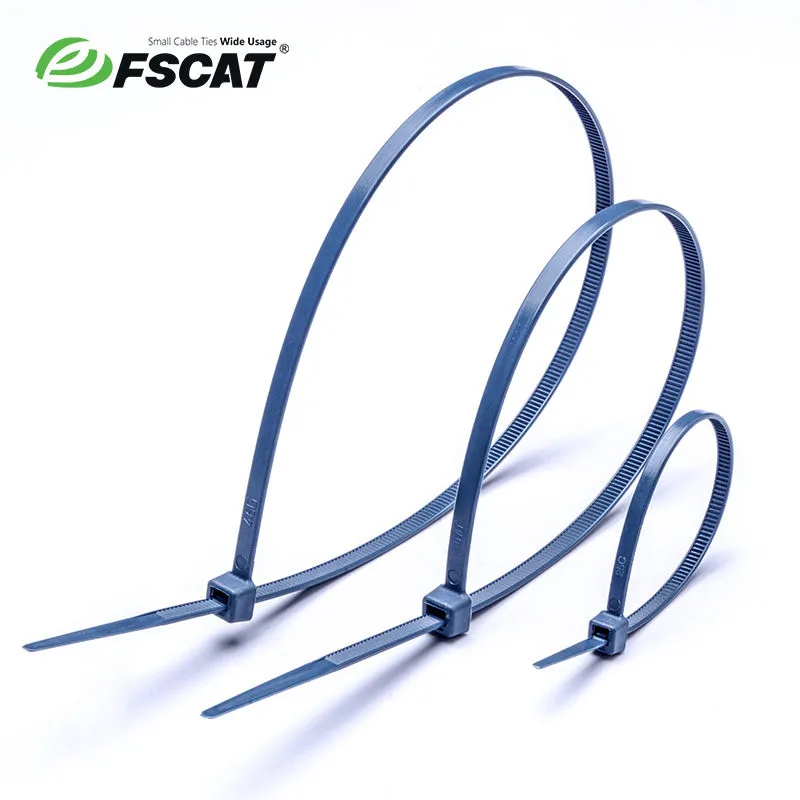

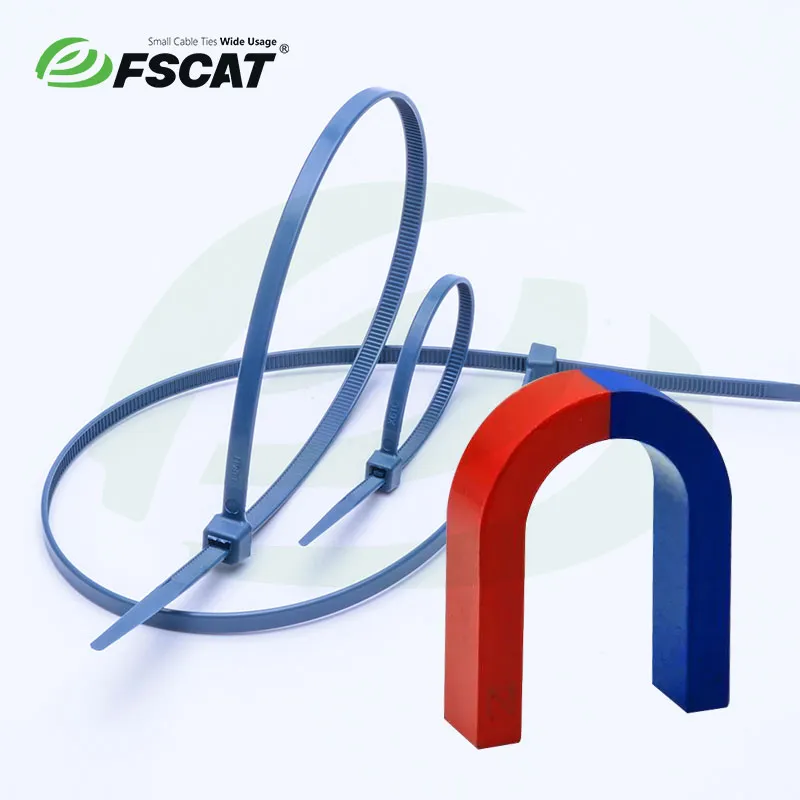

Metal Detectable Cable Ties are specifically designed for use in the food, beverage, and pharmaceutical processing industries. These cable ties are manufactured with a metal impregnated material that allows for identification by metal detectors, x-ray inspections, and magnets. Thanks to a unique manufacturing process that incorporates metallic pigment, even small 'cut-off' sections of the tie can be detected. The teal color, per common industry practices, ensures easy visual detection. Ideally suited for installing cabling in and around the manufacturing process, Metal Detectable Cable Ties are available in bulk 1000 or 500 piece bags, or smaller 100 piece bags.

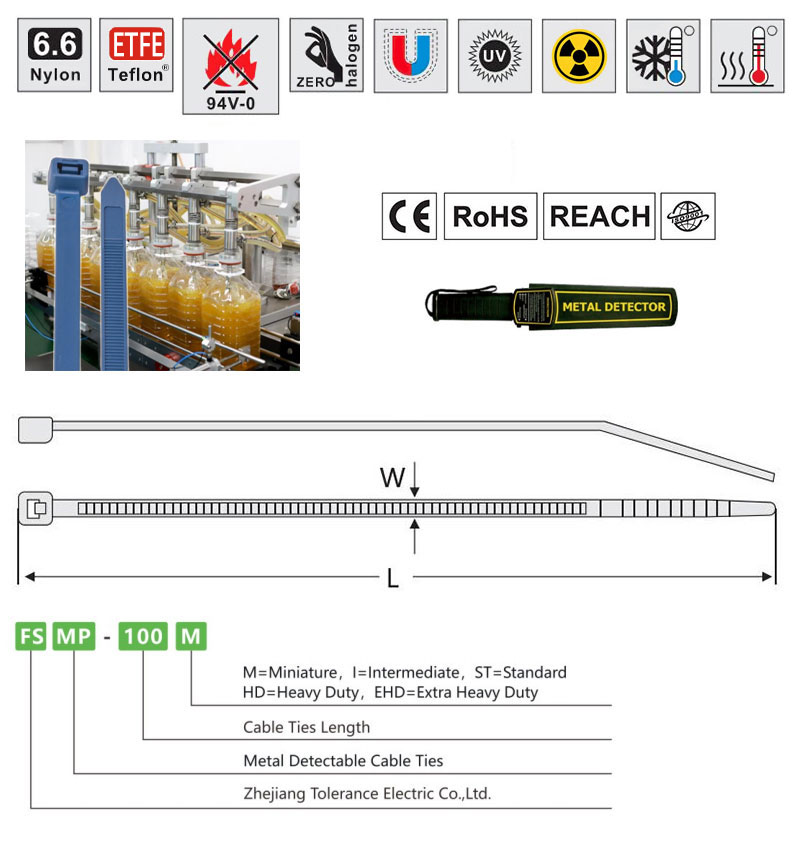

plane figure;CE,RoHS,REACH,ISO9001




Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water.  TOLERANCEpackaging may keep the moisture. In order to keep the quality,it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.



Here are our suggestion for the cable tie store:

 Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

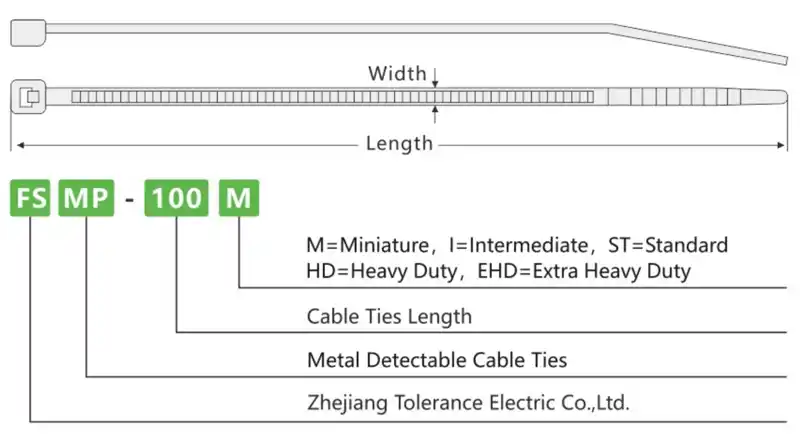

Technical Information

MATERIAL: Polyamide 6.6(metal impregnated material )

Material brand: China Huafeng158L;Radici A45L;Invista 4820L

Flammability of raw material : UL 94 - V2

Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)

Installation temperature: -10°C ~+85°C.

Working temperature:-40°C ~+85°C.

Max sustaiaable tempeature for short time:+110°C.

Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.

Not resistant to phenols.

Carbon black addiction gives a better UV resistance (only for Black Cabe Ties)

Product Specification
Item No. Width Length Max.Bundle Dia. Min.Bundle Dia. Min.Tensile Strength
mm inch mm inch mm inch mm inch N ibs
TSY-100M 2.5 0.098 100 3.94 22 0.87 2 0.079 80 18
TSY-1501 3.6 0.142 150 5.91 35 1.65 3 0.118 180 42
TSY-2001 3.6 0.142 200 7.87 50 2.56 3 0.118 180 42
TSY-200ST 4.8 0.189 200 7.87 50 1.97 3.5 0.138 222 50
TSY-300ST 4.8 0.189 300 11.81 70 3.15 3.5 0.138 222 50
TSY-370ST 4.8 0.189 370 14.57 98 3.86 3.5 0.138 222 50
TSY-370HD 7.6 0.299 370 14.57 98 3.86 8.5 0.33 560 130
