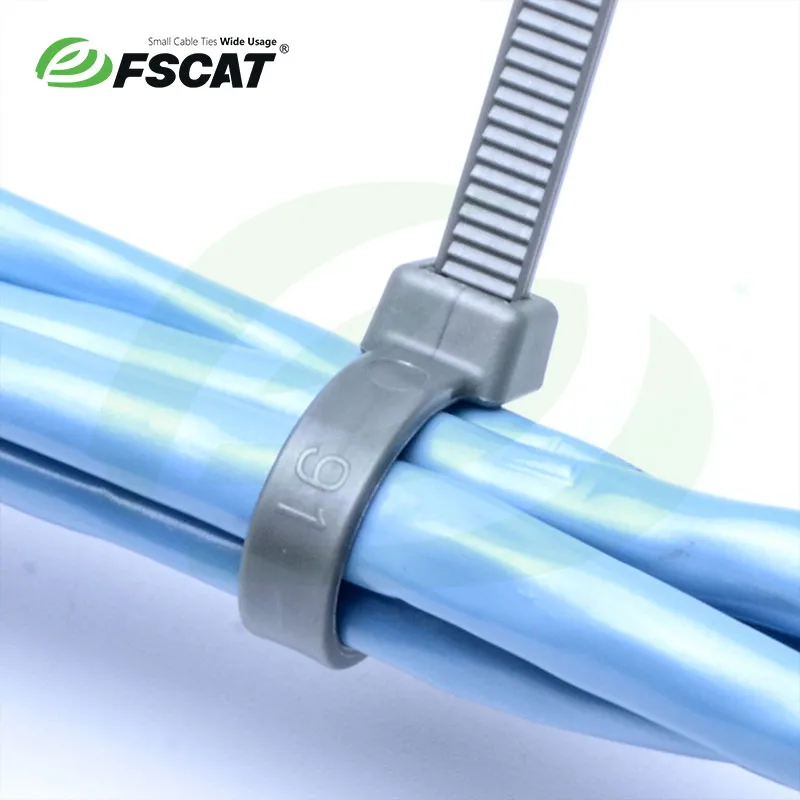

UV-resistant cable ties are perfect for outdoor use in solar power stations, communication towers, construction, and cable management. Their UV resistance ensures they remain durable and strong under prolonged sunlight exposure.

For special customization needs, contact us to learn more!

Certifications

For lower prices on bulk purchases, please contact us at

Request for Quotation
Product Description

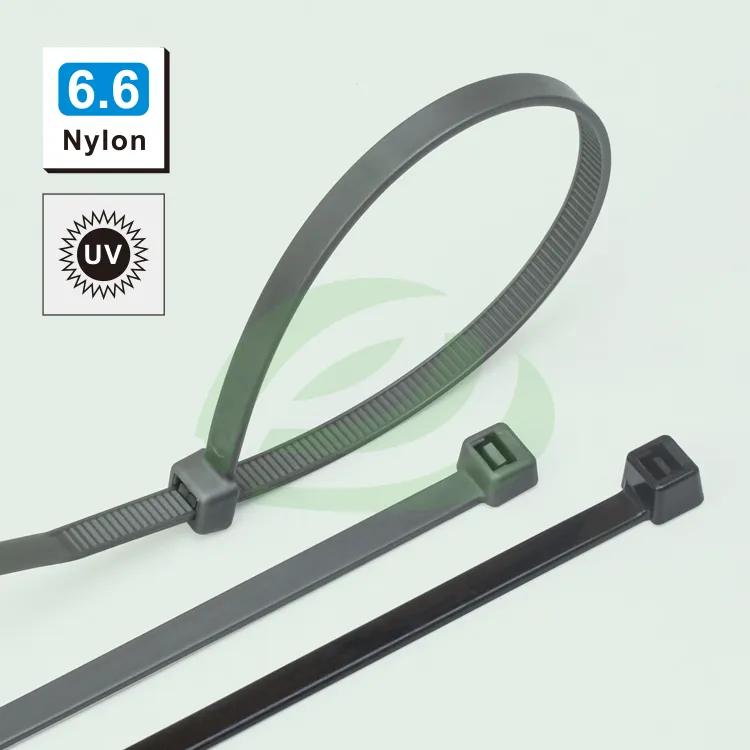

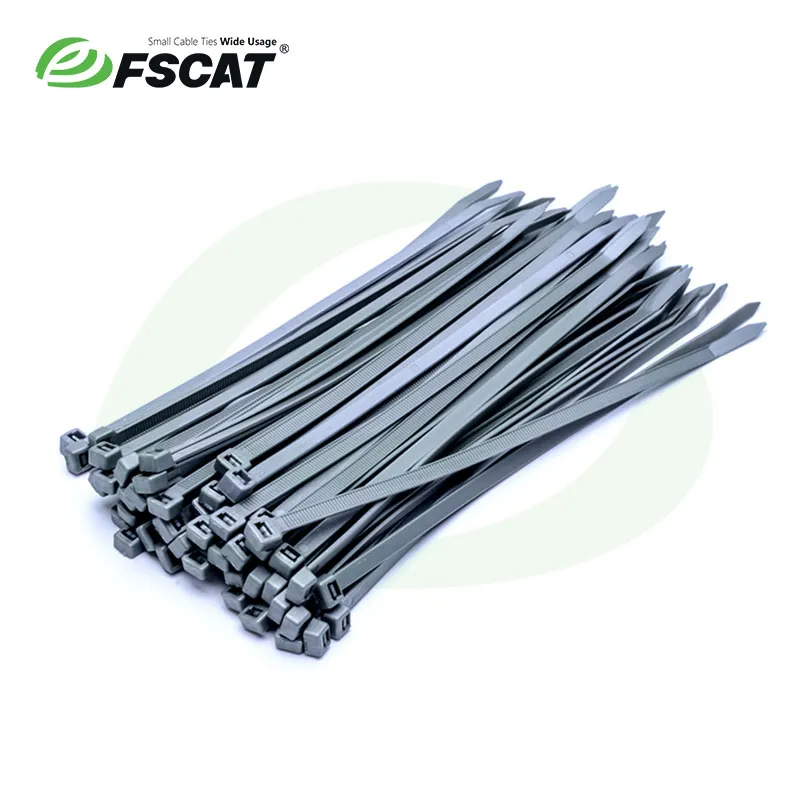

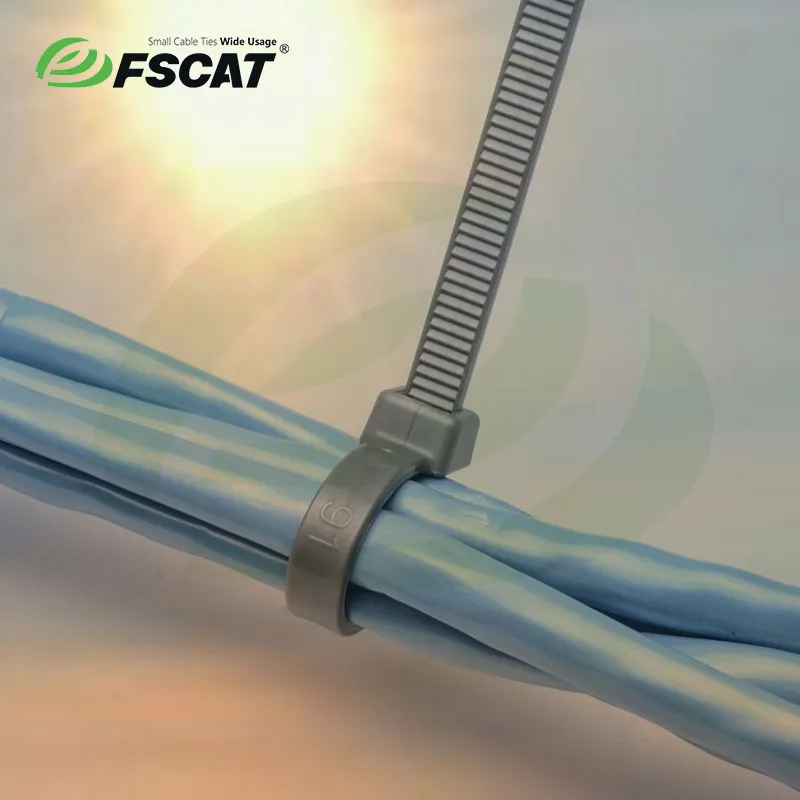

When using cable ties in an external environment, it is recommended to use UV cable ties. PA66 with UV additives can effectively play a role in outdoor fixed pipe or cable applications. The UV cable tie is generally black. The integrated structure can effectively maintain performance and facilitate packaging. 1000 pieces of UV ties are packed in bulk bags, 100 pieces or 50 pieces are packed in small bags.



plane figure;CE,RoHS,REACH




Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water.  TOLERANCEpackaging may keep the moisture. In order to keep the quality,it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.



Here are our suggestion for the cable tie store:

Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

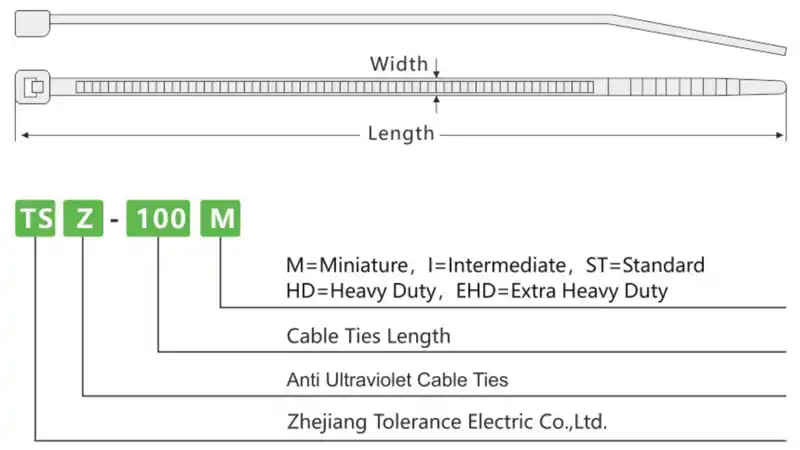

Technical Information

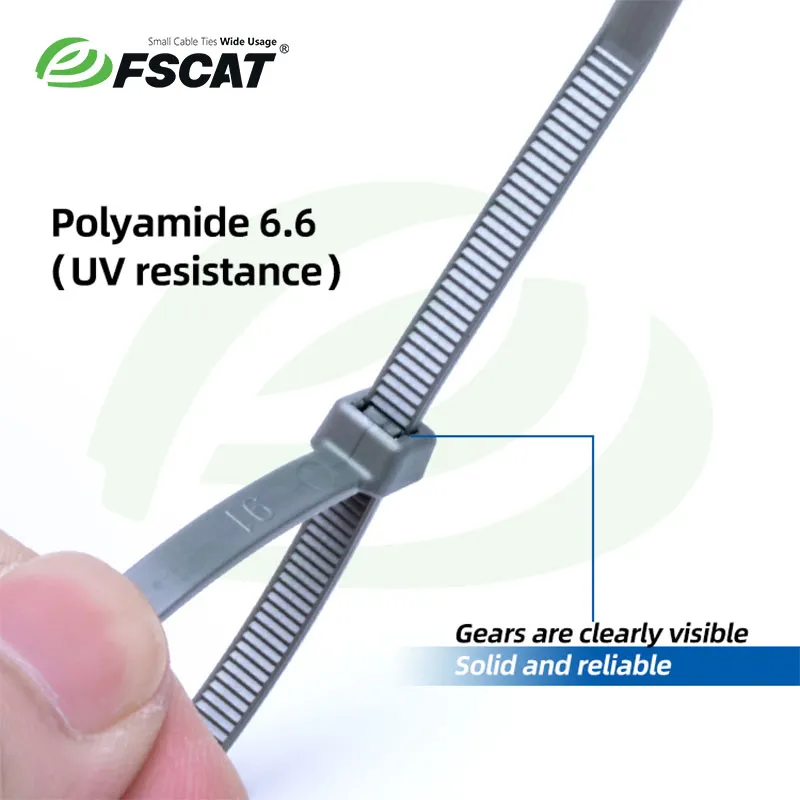

MATERIAL: Polyamide 6.6(UV resistance)

Material brand: China Huafeng158L;Radici A45L;Invista 4820L

Flammability of raw material : UL 94 - V2

Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)

Installation temperature: -10°C ~+85°C.

Working temperature:-40°C ~+85°C.

Max sustaiaable tempeature for short time:+110°C.

Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.

Not resistant to phenols.

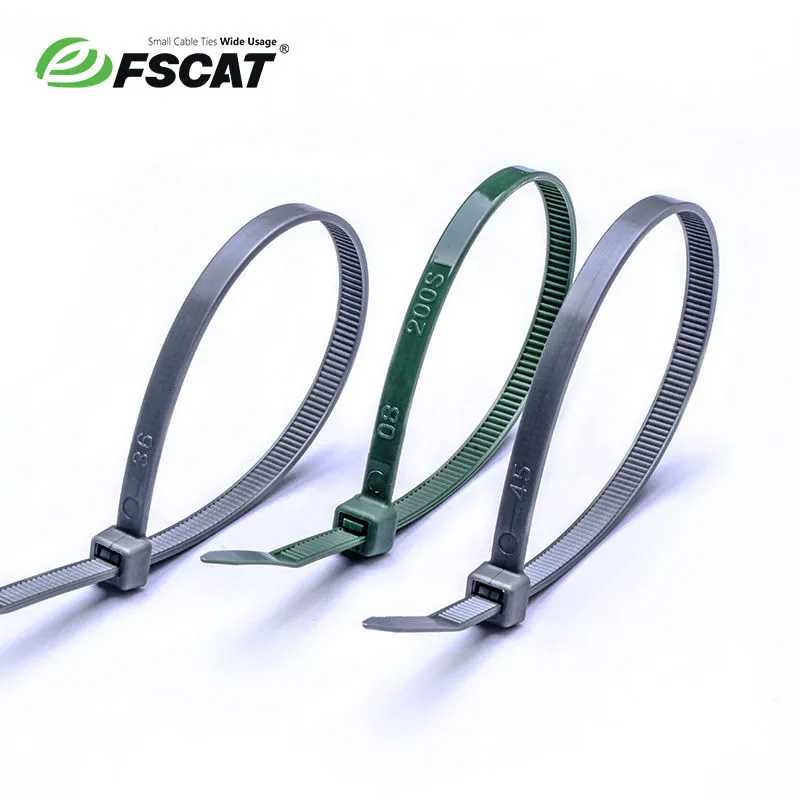

UV resistance (A variety of colors, black, milky white, silver gray, brown, dark green Cable Ties)

Product Specification

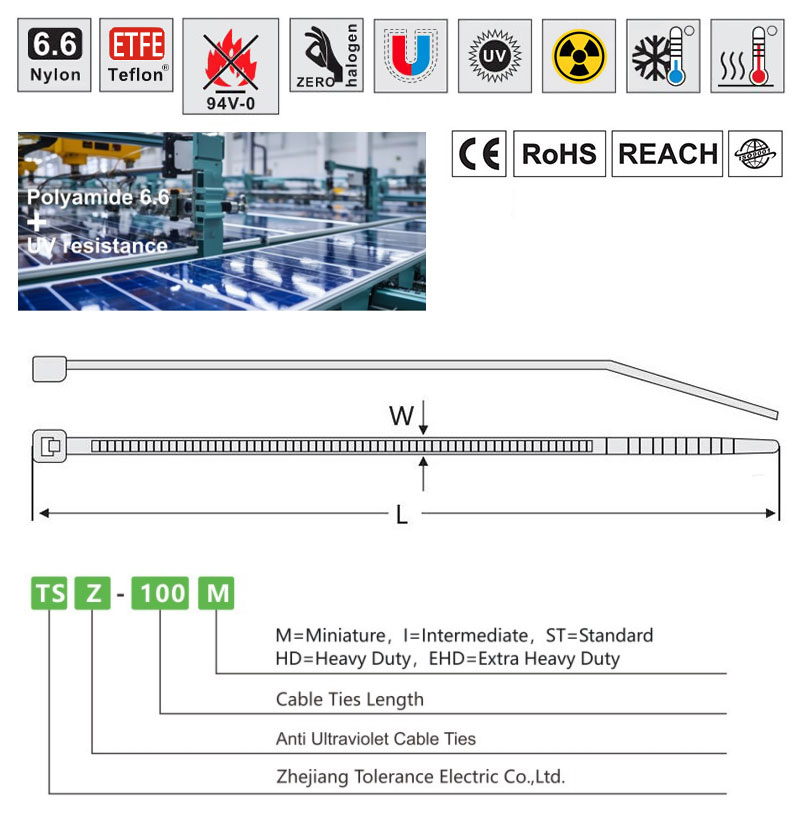

Item No. Width Length Max.Bundle Dia. Min.Bundle Dia. Min.Tensile Strength
mm inch mm inch mm inch mm inch N ibs
TSZ-100M 2.5 0.098 100 3.94 11 0.43 2.0  0.079 80 18
TSZ-150I 3.6 0.142 150 5.91 35 1.65 3.0  0.118 180 42
TSZ-200I 3.6 0.142 200 7.87 50 2.56 3.0  0.118 180 42
TSZ-300I 3.6 0.142 300 11.81 80 3.94 3.0  0.118 180 42
TSZ-200ST 4.8 0.189 200 7.87 50 1.97 3.5  0.138 222 50
TSZ-250ST 4.8 0.189 250 9.84 65 2.56 3.5  0.138 222 50
TSZ-300ST 4.8 0.189 300 11.81 80 3.15 3.5  0.138 222 50
TSZ-350ST 4.8 0.189 350 13.78 90 3.54 3.5  0.138 222 50
TSZ-400ST 4.8 0.189 400 15.75 105 5.91 3.5  0.138 222 50
TSZ-300HD 7.6 0.299 300 11.81 80 3.15 8.0  0.315 560 130
TSZ-370HD 7.6 0.299 370 14.57 98 3.86 8.0  0.315 560 130
TSZ-400HD 7.6 0.299 400 15.75 105 4.13 8.0  0.315 560 130
