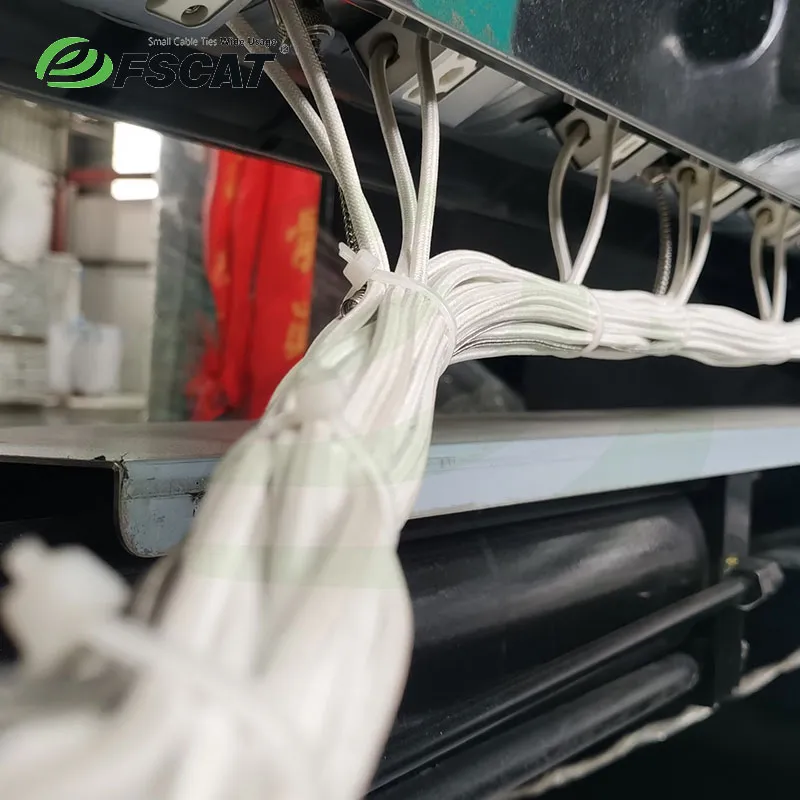

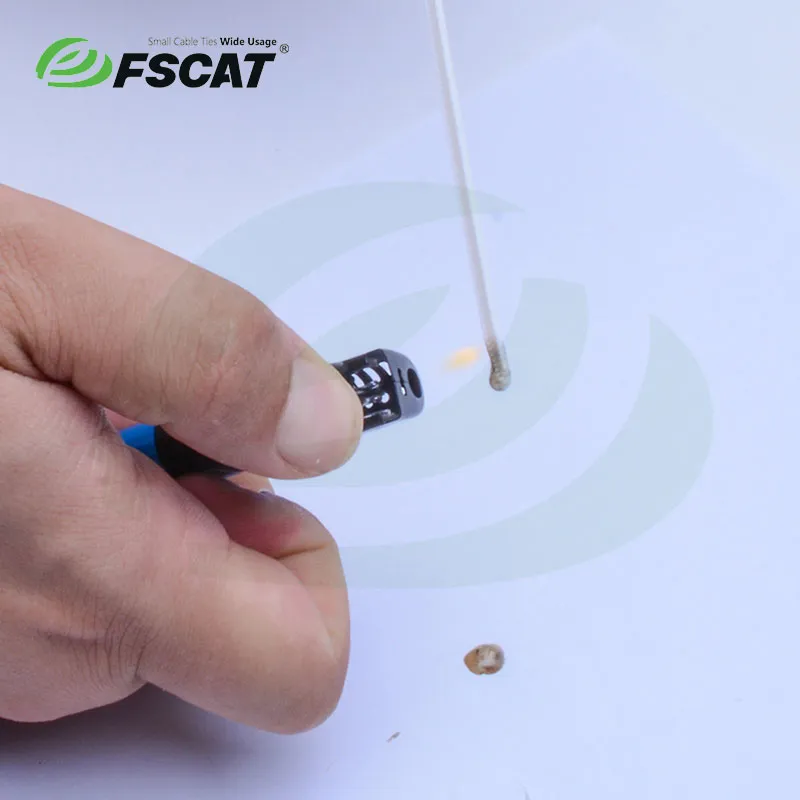

V0 flame-retardant cable ties are widely used in environments requiring high fire resistance, such as electronics, data centers, automotive, and electrical equipment. Their V0 rating ensures quick self-extinguishing, reducing fire spread and enhancing safety.

For special customization needs, contact us to learn more!

Certifications

For lower prices on bulk purchases, please contact us at

Request for Quotation
Product Description

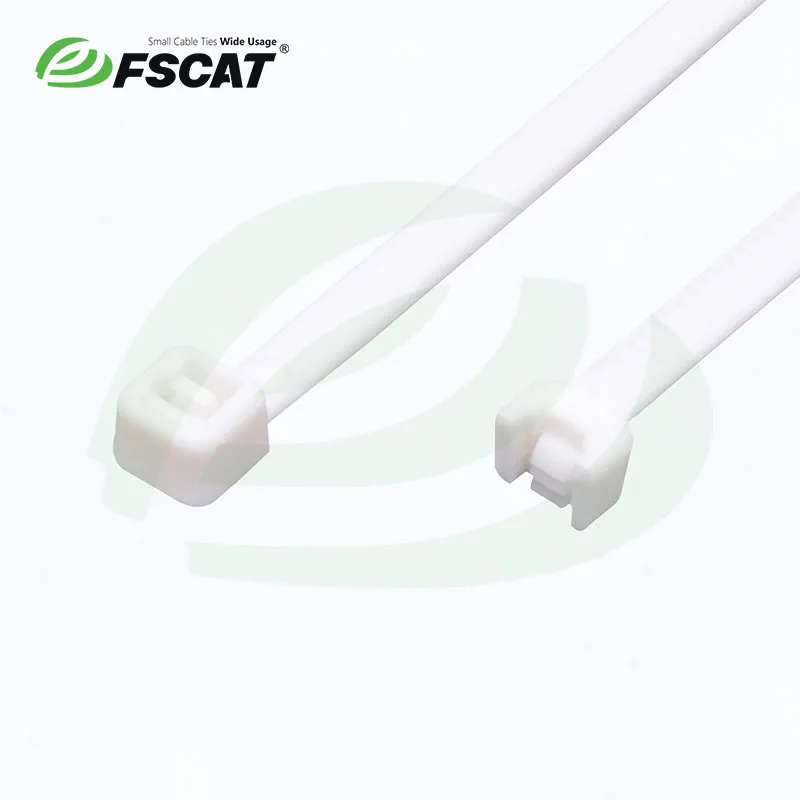

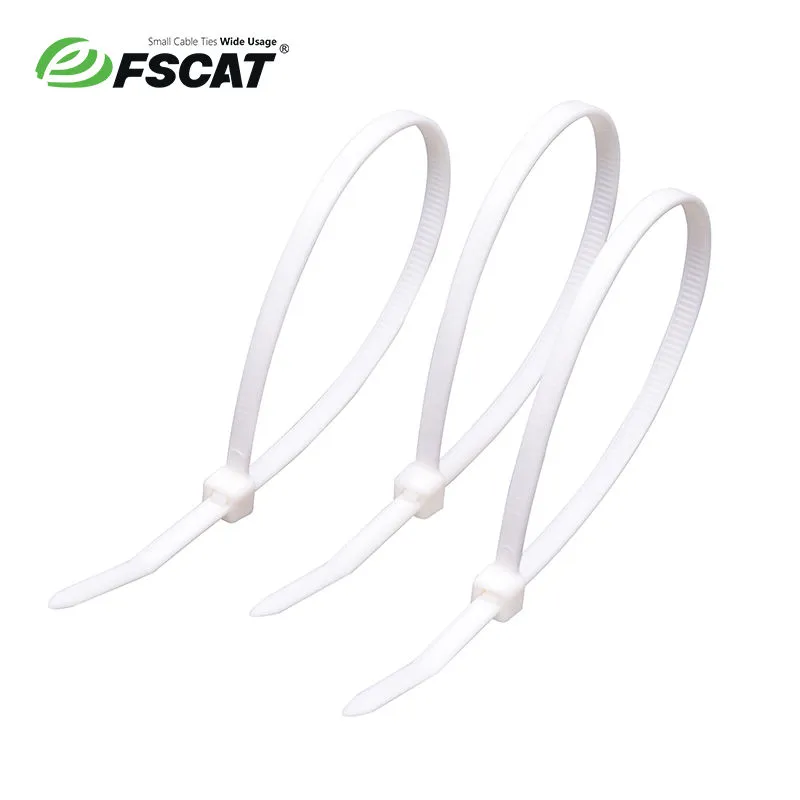

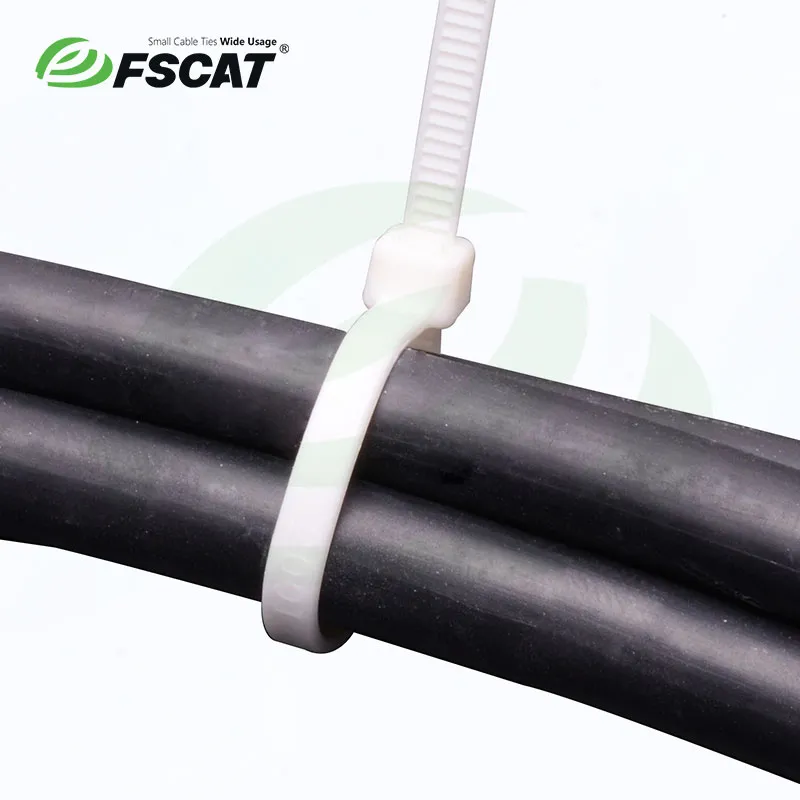

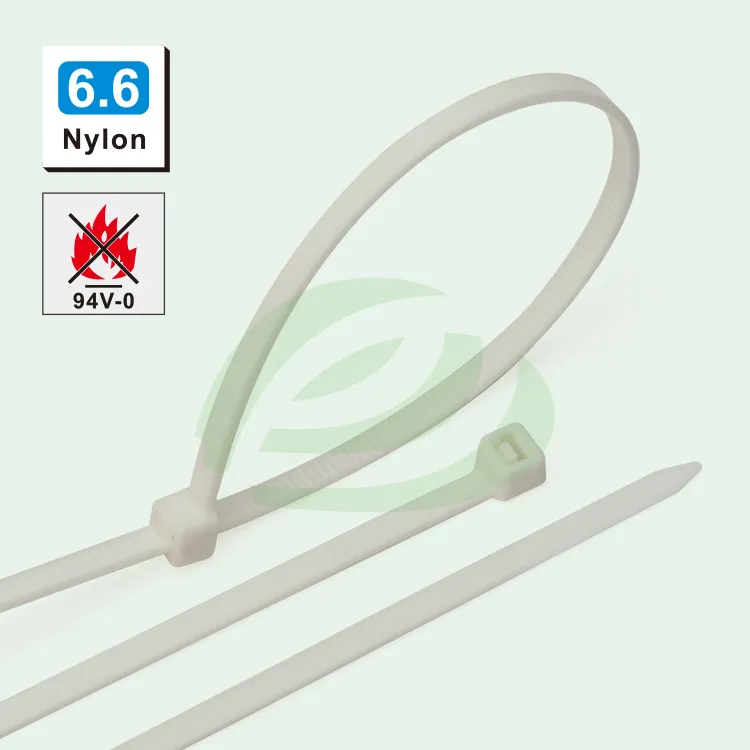

The 94V-0 Grade Cable Ties is added with a special flame retardant additive. This special cable tie is used in special scenes and can still maintain the function of fixing the pipeline under the condition of the fire source scene.The 94V-0 Grade Cable Ties available in bulk 1000 or 500 pieces bags or smaller 100 piece bags.

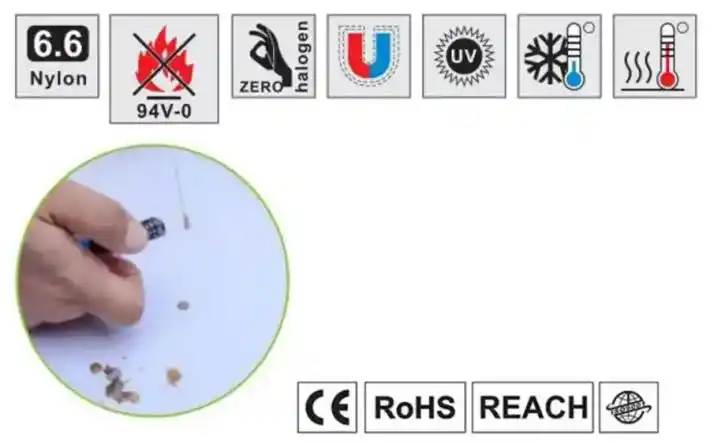

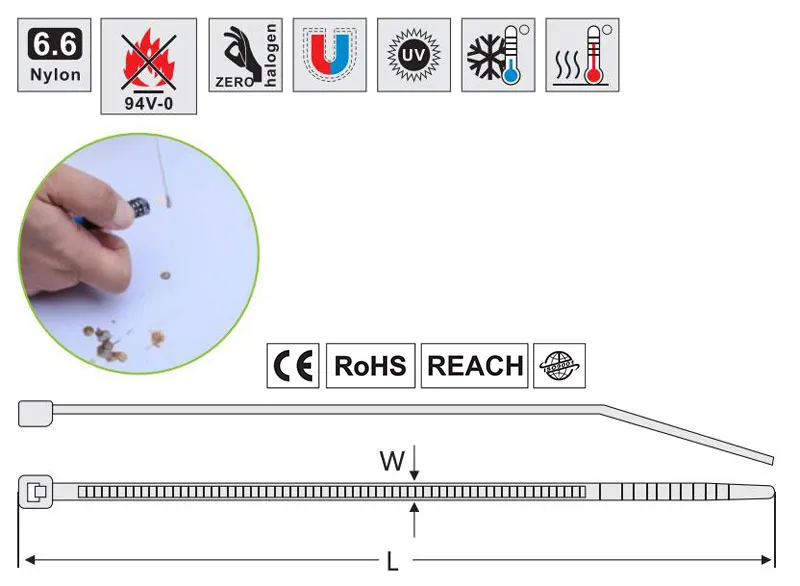

plane figure




Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water. TOLERANCEpackaging may keep the moisture. In order to keep the quality,it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.



Here are our suggestion for the cable tie store:

 Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

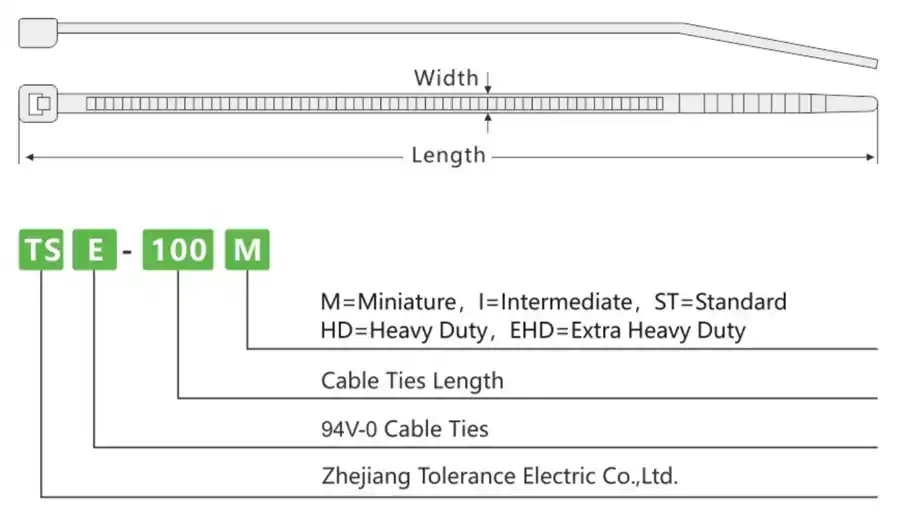

Technical Information

MATERIAL: Polyamide 6.6(94V-0 Grade )

Material brand: China Huafeng158L;Radici A45L;Invista 4820L

Flammability of raw material : UL 94 - V0

Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)

Installation temperature: -10°C ~+85°C.

Working temperature:-40°C ~+85°C.

Max sustaiaable tempeature for short time:+110°C.

Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.

Not resistant to phenols.

Carbon black addiction gives a better UV resistance (only for Black Cabe Ties)

Product Specification
Item No. Width Length Max.Bundle Dia. Min.Bundle Dia. Min.Tensile Strength
mm inch mm inch mm inch mm inch N ibs
TSF-100M 2.5  0.098 100 3.94 22 0.87  2.0  0.079 80 180
TSF-150I 3.6  0.142 150 5.91 35 1.38 3.0  0.118 180 42
TSF-200I 200 7.87 50 2.56 3.0  0.118
TSF-250I 250 9.84  65 2.76 3.0  0.118
TSF-300I 300 11.81 80 3.15 3.0  0.118
TSF-370I 370 14.57  105 4.13  3.0  0.118
TSF-200ST 4.8  0.189 200 7.87 50 1.97  3.5  0.138 222 50
TSF-250ST 250 9.84 65 2.76 3.5  0.138
TSF-300ST 300 11.81  80 3.15 3.5  0.138
TSF-400HD 7.6  0.299 400 15.75 105 4.13 8.0  0.315 560 130
