Double Loop Mounting Cable Ties

Name: Double Loop Mounting Cable Ties
Brand: Tolerance
SKU: 00047
Rating: 4.1 (74 reviews)

Double loop cable ties are used in security and law enforcement to secure two sets of pipes or cables simultaneously. The design features a screw hole for mounting on installation points, ensuring stable fastening and strong restraint for various security and enforcement needs.

For special customization needs, contact us to learn more!

Certifications

For lower prices on bulk purchases, please contact us at

Request for Quotation

Product Description

Informaticon

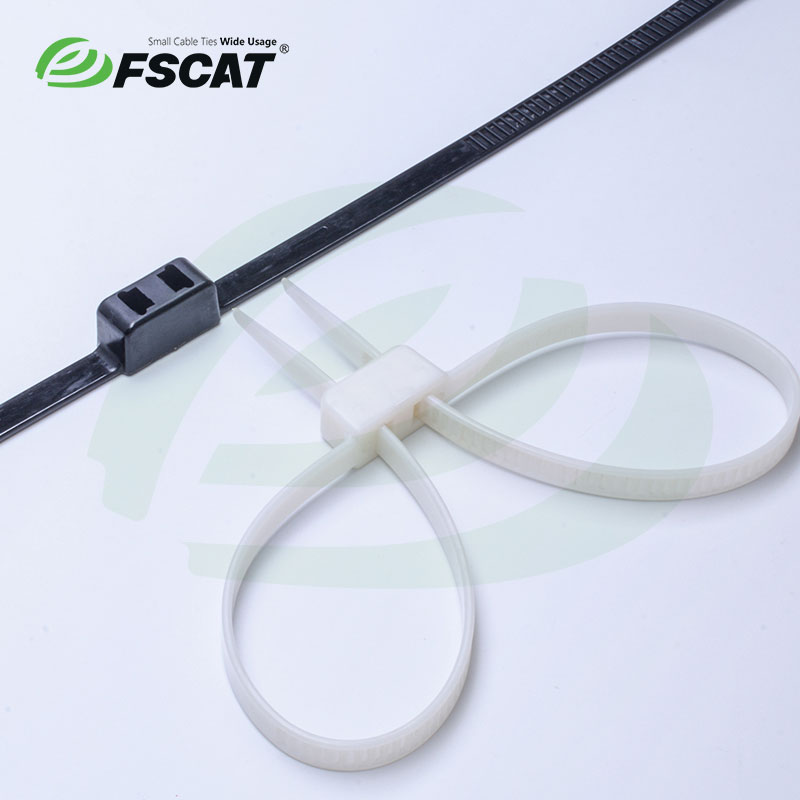

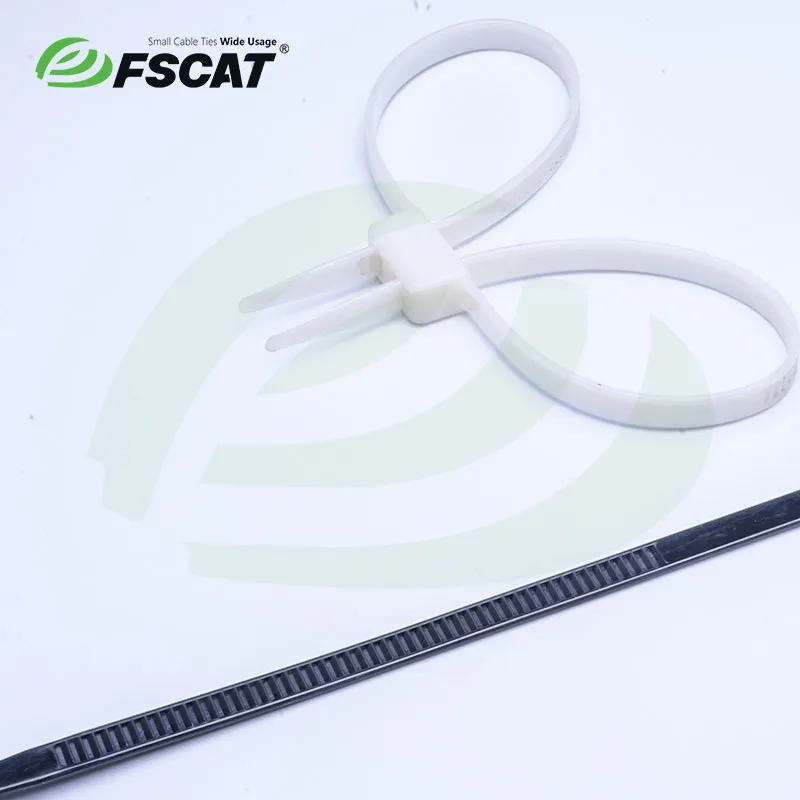

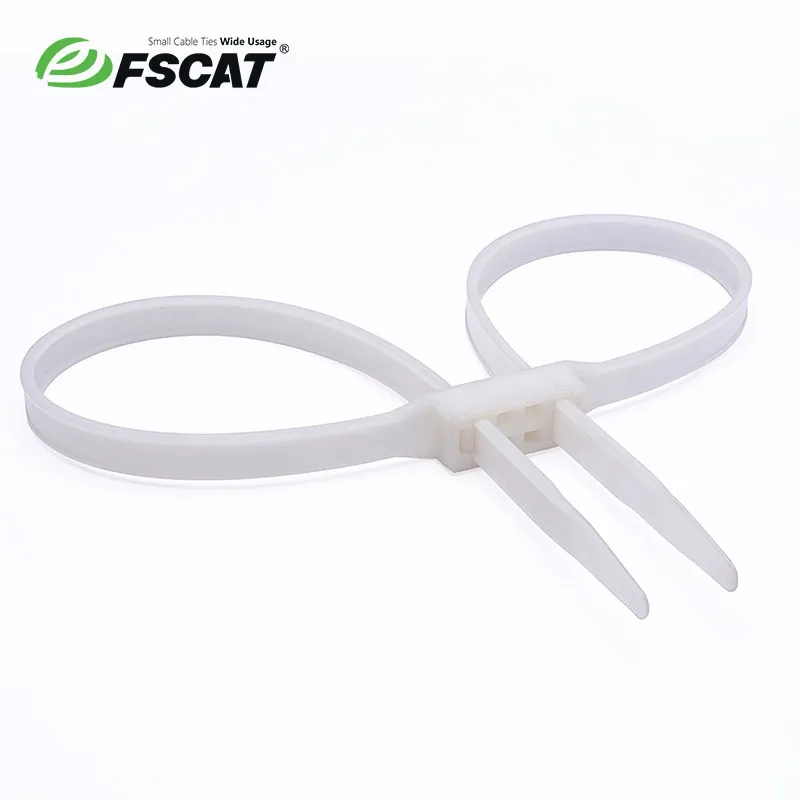

The design of the Double Loop Mounting cable ties is like the connection of two cable ties, which can bind or fix two sets of pipes or cables at the same time. There is a fixing screw hole in the middle of the head. The cable tie can be fixed on the mounting hole according to the needs of the design drawings.，Double Loop Mounting cable ties (Double Head Cable Ties) available in smaller 100 piece bags.

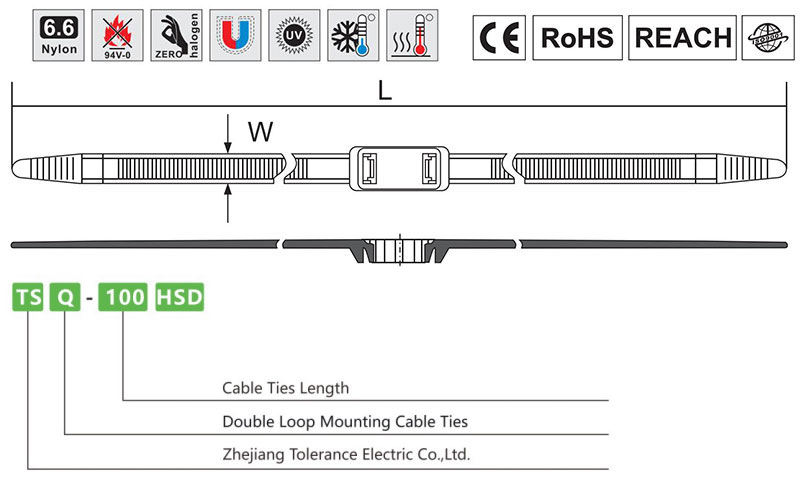

plane figure;CE,RoHS,REACH,ISO9001

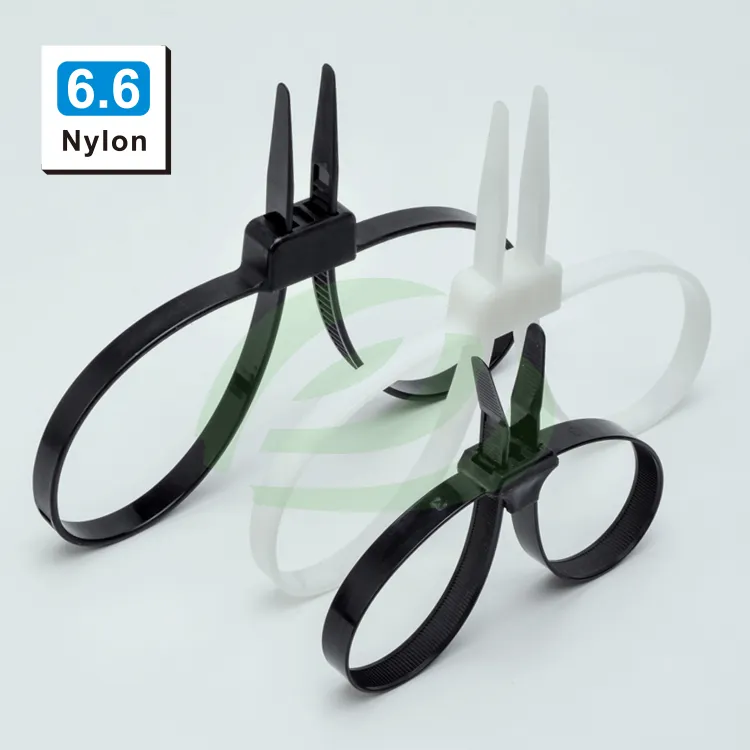

Features: handcuff design, substitute foriron handcuff.

Nyon products

Nyon is hygroscopic, it will absorb moisture, and lose the moisture too. To ensure optimum performance, the material must maintain a 2.5% water. TOLERANCE packaging may keep the moisture. In order to keep the quality，it's better to remain the original packaging for Inventories. if stored impropery especally in dry or cold environment, it will lose water from cable ties, and impact the use of cable ties. Once the package is opened; please use out the cable ties as soon as possible.

Here are our suggestion for the cable tie store:

Do not expose or place the cable ties in direct sunlight environment;Do not expose or placed the cable tie near direct heat;the ideal temperature to store the cable tie;

Technical Information

MATERIAL: Polyamide 6.6

Material brand: China Huafeng158L;Radici A45L;Invista 4820L

Flammability of raw material : UL 94 - V2

Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)

Installation temperature: -10°C ~+85°C.

Working temperature:-40°C ~+85°C.

Max sustaiaable tempeature for short time:+110°C.

Good resistance to bases, oils, greases, oil derivates,chloride solvents. Limited resistance to acids.

Not resistant to phenols.

Carbon black addiction gives a better UV resistance (only for Black Cabe Ties)

Product Specification

Item No.	Width		Length		Max.Bundle Dia.		Min.Loop Tensile Strength			Mounting Hole mm(inch)	Panel Thickness mm(inch)
Item No.	mm	inch	mm	inch	mm	inch	N	Kgf	lbf	Mounting Hole mm(inch)	Panel Thickness mm(inch)
TFT-001	153	6.02	5	0.2	36	1.42	178	18.2	40	Φ7.0x13.0 (0.28x0.51)	0.8~1.5 (0.32x0.06)
TFT-002	186	7.32	4.8	0.19	42	1.65	133	13.6	30	Φ7.0(0.30)	1.0~2.5 (0.04x0.10)
TFT-003	210	8.25	4.8	0.19	50	1.97	218	22.2	49	Φ7.0x7.8 (0.29x0.31)	6.0~8.0 (0.24x0.32)
TFT-004	113	4.44	4.8	0.19	25	0.98	218	22.2	49	Φ7.0x7.8 (0.29x0.31)	6.0~8.0 (0.24x0.32)
TFT-005	210	8.25	6.5	0.26	50	1.97	218	22.2	49	Φ9.0(0.35)	1.0~2.8 (0.04x0.11)
TFT-006	115	6.1	4.8	0.19	35	1.38	133	13.6	30	Φ7.5x8.0 (0.30x0.32)	8.0~1.6 (0.03x0.06)
TFT-007	110	4.33	4.8	0.19	22	0.87	133	13.6	30	Φ5.7(0.22)	1.0~3.0 (0.04x0.12)
TFT-008	154	6.06	6.6	0.26	35	1.38	178	18.2	40	Φ5.8(0.23)	1.0~3.0 (0.04x0.12)
TFT-009	165	6.5	6.4	0.25	35	1.38	392	40	80	Φ6.5(0.26)	1.0~3.0 (0.04x0.12)
TFT-010	174	6.86	6.5	0.26	43	1.69	147	15	33	Φ12.7(0.50)	1.0~2.5 (0.04x0.10)
TFT-011	170	6.69	5.5	0.22	40	1.57	178	18.2	40	Φ6.5(0.26)	1.0~2.8 (0.04x0.11)
TFT-012	134	5.26	7.1	0.28	33	1.3	392	40	88
