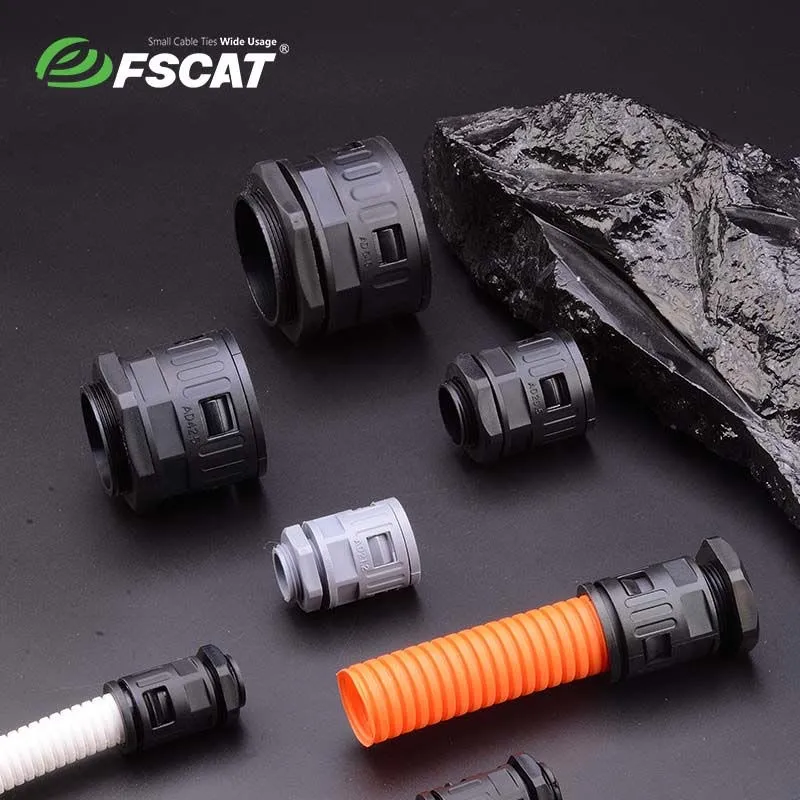

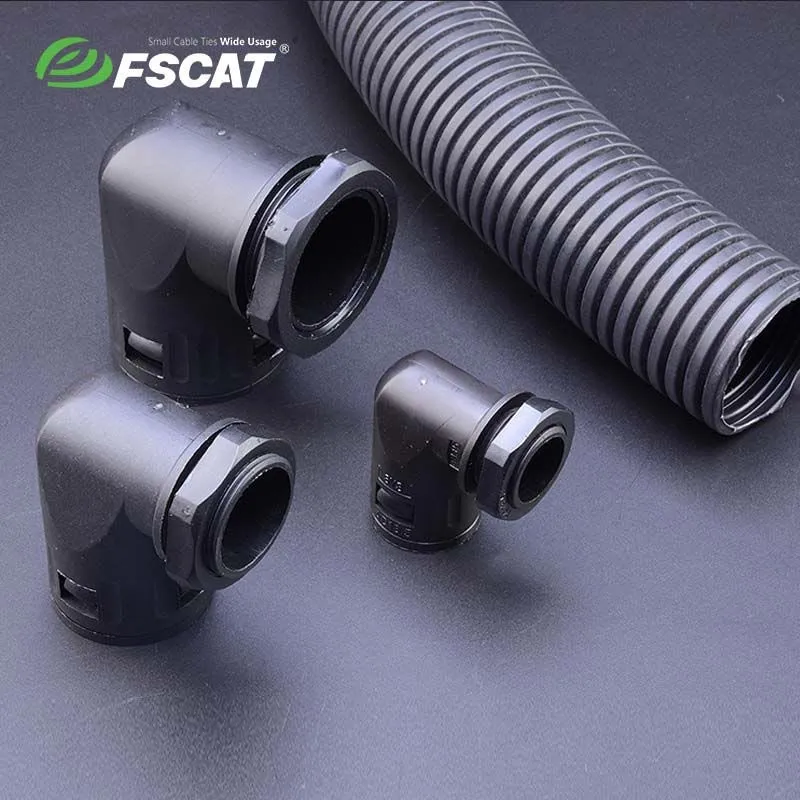

◇Material: Nylon (Polyamide) ◇Thread Size: Metric/PG thread ◇Operating temperature: 40 ~+110 ℃ ◇Colour: Black, other colors can be customized ◇Feature: Special design for internal lbcking and body, Installation and uninstallation only need to be inserted and unplugged without tools.
Certifications
For lower prices on bulk purchases, please contact us at

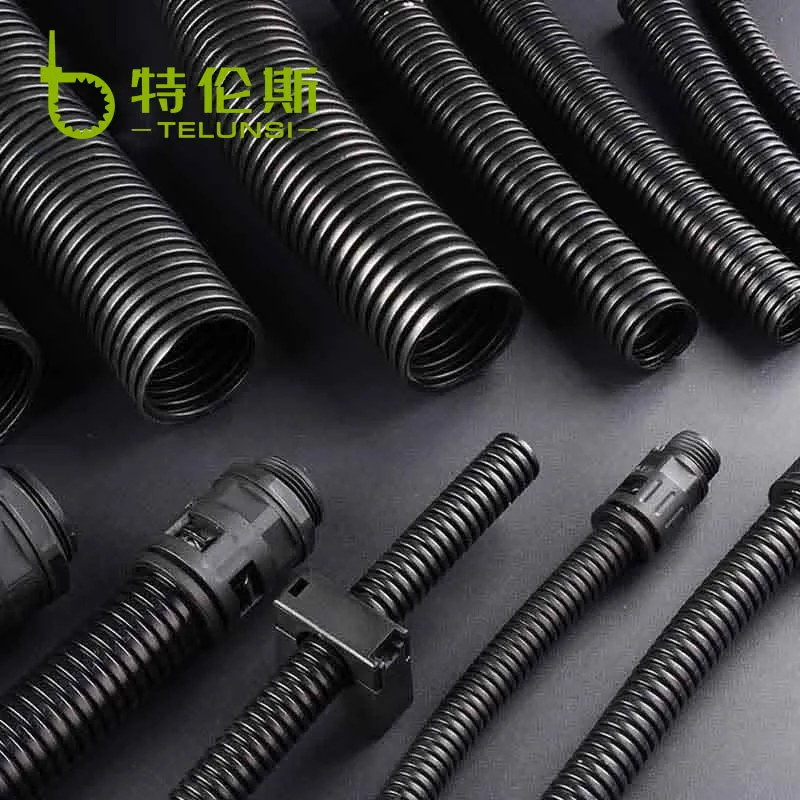

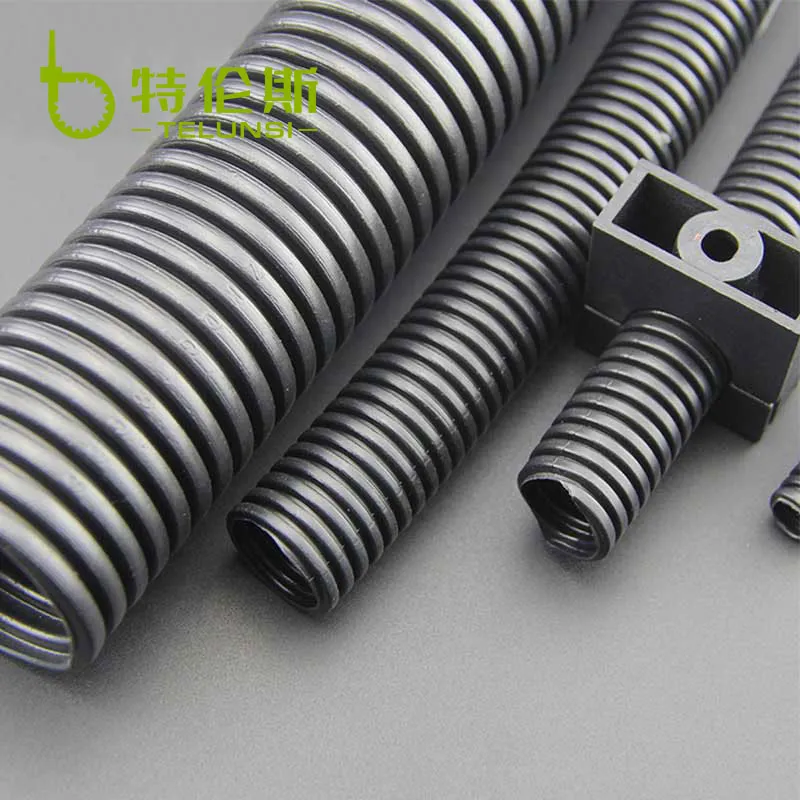

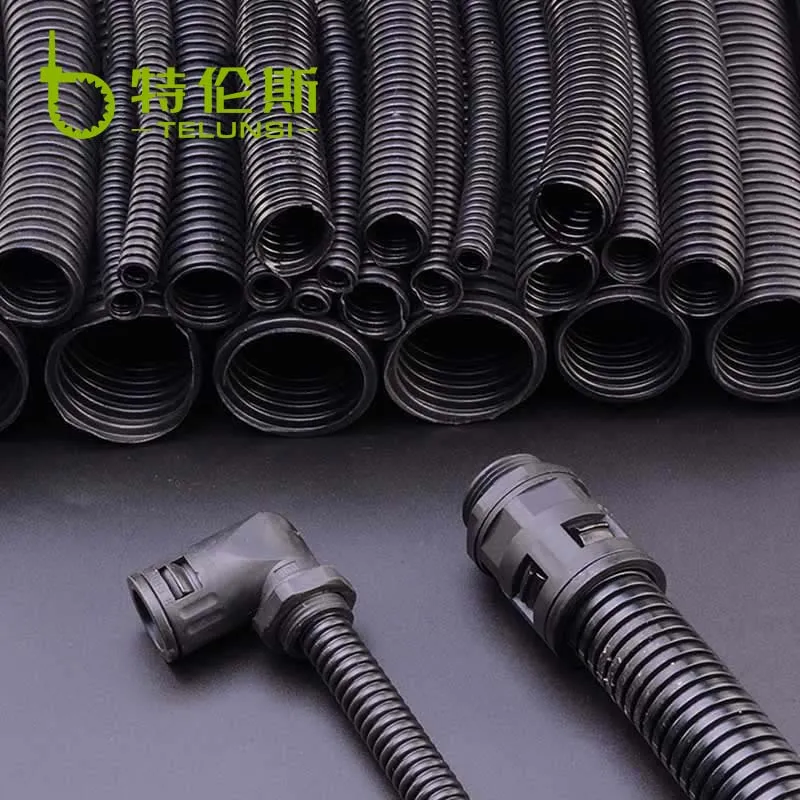

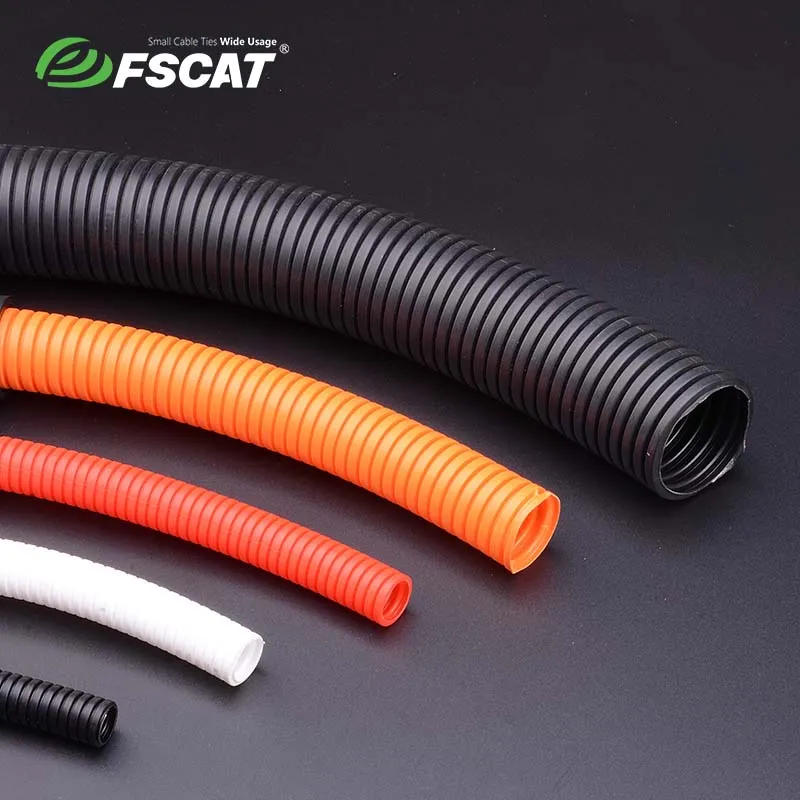

Product Overview
◇Product Material: PE/PP/PA
◇Working temperature: -30℃-+100℃, instantaneous to +110℃
◇Structure: Both inside and outside look wavy
◇Color: Black, other colors can be customized
◇Feature: Good flexibility, surface glossy, Anti-chemical
◇Application: Main used in automotive wiring, can also be used for machine tools, automated instruments, motor motors, protective cables from external wear and insulation
◇Usage: Put the wires/cables through the pipes before fitting correspondent type of joints
◇Material: Nylon (Polyamide) ◇Thread Size: Metric/PG thread ◇Operating temperature: 40 ~+110 ℃ ◇Colour: Black, other colors can be customized ◇Feature: Special design for internal lbcking and body, Installation and uninstallation only need to be inserted and unplugged without tools.
|
Model |
Specification |
Internal and Outside diameter (mm) |
Bending radius (mm) |
Package(mm) |
|
PE/PP/PA-7 |
AD7 |
4.5×7.0 |
16 |
200 |
|
PE/PP/PA-10 |
AD10 |
7.0×10 |
16 |
100 |
|
PE/PP/PA-11 |
AD11 |
8.5×11 |
16 |
200 |
|
PE/PP/PA-13 |
AD13 |
10×13 |
20 |
100 |
|
PE/PP/PA-15.8 |
AD15.8 |
12×15.8 |
30 |
100 |
|
PE/PP/PA-18.5 |
AD18.5 |
14.3×18.5 |
40 |
100 |
|
PE/PP/PA-21.2 |
AD21.2 |
17×21.2 |
45 |
100 |
|
PE/PP/PA-25 |
AD25 |
21×25 |
45 |
100 |
|
PE/PP/PA-28.5 |
AD28.5 |
23x28.5 |
50 |
50 |
|
PE/PP/PA-34.5 |
AD34.5 |
29×34.5 |
60 |
50 |
|
PE/PP/PA-42.5 |
AD42.5 |
36×42.5 |
70 |
50 |
|
PE/PP/PA-54.5 |
AD54.5 |
48×54.5 |
90 |
25 |
