Body Material: ABS
Material Feature: can resistant the stock, heat, low temperature, and chemicals.
Excellent electrical properties,good surface gloss.
Certification: CE ROHS
Certifications
For lower prices on bulk purchases, please contact us at
Product Overview
◇Body Material: ABS
◇Material Feature: can resistant the stock, heat, low temperature, and chemicals.
Excellent electrical properties,good surface gloss.
◇Certification: CE ROHS
◇Installation method:
1.inside of the box have the circuit board or the rails are mounted on the boss
2.External installation:can use the hole of the bottoms of the box directly fixed on the wall (can by the four angles, use the screw or nail fixed the box on the wall or board.
◇Entry hole: waterproof Junction Box hashole printed, customer can depend self requirements knock down a hole or all holes, with set the waterproof clamping joints, to achieve the best waterproof effect.
Suitable for indoor and outdoor electrical, communications, fire equipment, steel smelting, Petrochemical, electronics, electricpower, railway, construction site, mining field, airport, hotel, ship,large factory, coastal factory , unloading terminal equipment Sewage treatment facilities, environmental pollution facilities and so on.

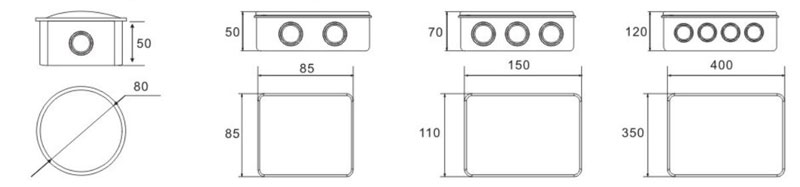

| Model Code | Hole Qty. | Hole Size (mm) | IP | G.Weight (KG) | N.Weight (KG) | Qty/Carton | Carton Dimenstion (cm) |
| 50×50 | 4 | 25 | IP55 | 22.5 | 21.5 | 300 | 45.5×37.5×51 |
| 80x50 | 4 | 25 | IP55 | 16 | 15 | 240 | 53×35×61 |
| 85×85x50 | 7 | 25 | IP65 | 21 | 20 | 200 | 53×41×53 |
| 100×100×70 | 7 | 25 | IP65 | 17 | 16 | 100 | 62×49×35 |
| 150×110×70 | 10 | 25 | IP65 | 16 | 15 | 60 | 68×33×45 |
| 150×150×70 | 8 | 25 | IP65 | 17.5 | 16 | 60 | 84.5×34×45 |
| 200×100×70 | 8 | 25 | IP65 | 15.5 | 14 | 60 | 61×46×42 |
| 200×155×80 | 10 | 36 | IP65 | 17 | 16 | 40 | 69.5×43.5×41 |
| 200×200×80 | 12 | 36 | IP65 | 16 | 15 | 40 | 45x45x81 |
| 255×200×80 | 12 | 36 | IP65 | 22.5 | 21 | 40 | 52x42x80 |
| 255×200×120 | 12 | 36 | IP65 | 23 | 22 | 30 | 64×55×62 |
| 300×250×120 | 12 | 36 | IP65 | 19 | 17 | 20 | 61.5×55.5×63 |
| 400×350×120 | 16 | 36 | IP65 | 17 | 16 | 10 | 74.5×42.5×61 |
