Snap Bushing
Snap Bushing
Snap Bushing
Snap Bushing

Snap Bushing

Material: UL approved Nylon 66, 94V-2
Color: Black



SNAP BUSHING smooth and insulate your raw-edged holes in metal chassis. Locking into hole firmly with fingertip pressure.Protect electrical cables, ropes, utility lines through metal holes.Available in application for chassis thickness Under 3.2mm.

For special customization needs, contact us to learn more!

Certifications

For lower prices on bulk purchases, please contact us at

Request for Quotation
Product Description

Material: UL approved Nylon 66, 94V-2

Color: Black

SNAP BUSHING smooth and insulate your raw-edged holes in metal chassis. Locking into hole firmly with fingertip pressure. Protect electrical cables, ropes, utility lines through metal holes.Available in application for chassis thickness Under 3.2mm

Technical Information

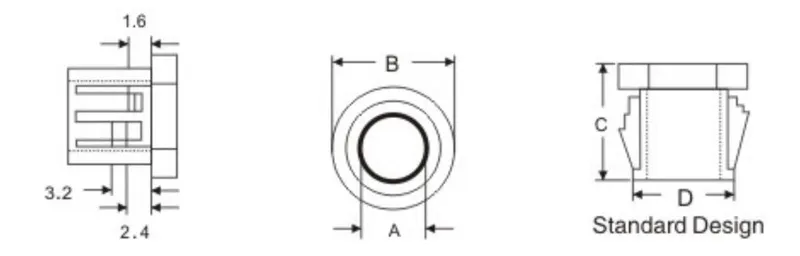

ichnography

Product Specification

Unit: mm

ITEM NO

D

A

B

C

SB-8

8.0

6.0

9.3

8.1

SB-10

9.3

6.2

12.0

10.3

SB-11

9.5

7.8

13.0

10.5

SB-13

12.8

9.2

14.6

10.3

SB-16

15.8

12.2

18.5

10.3

SB-19

18.0

14.2

21.8

10.3

SB-22

21.8

17.2

24.2

11.6

SB-25

25.2

18.8

28.5

11.6

SB-30

29.8

24.2

33.5

11.6

SB-38

38.1

29.0

42.1

11.4

SB-45

44.5

35.4

47.8

11.6

SB-50

50.8

41.6

54.6

11.8

Product Packaging
